AIR/VAPOUR BARRIERS

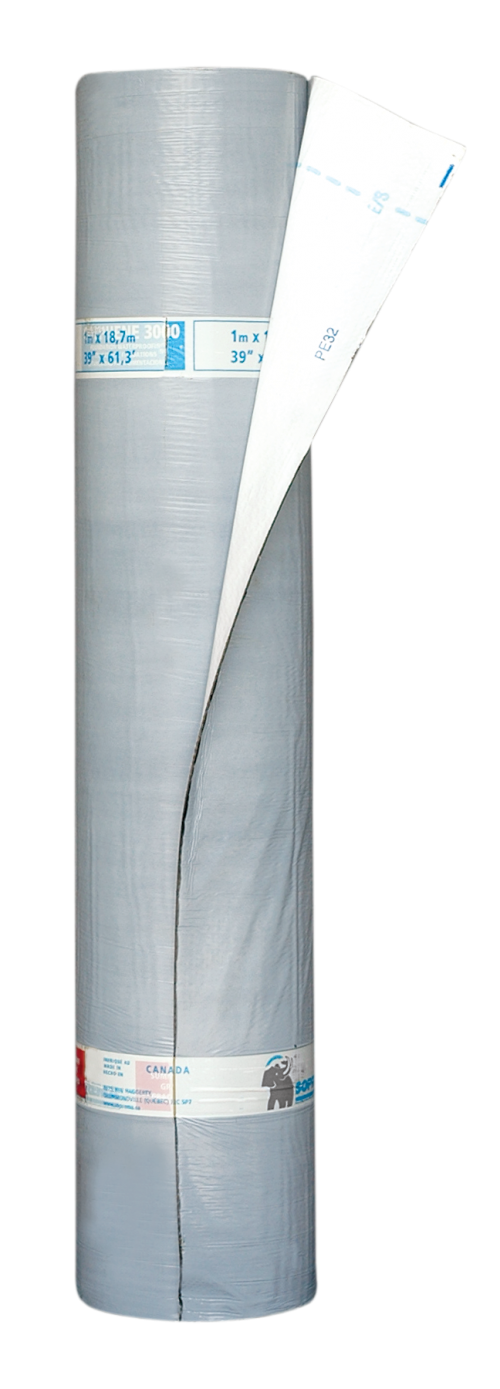

Soprema Colphene 3000
COLPHENE 3000 is a self-adhesive waterproofing membrane made of SBS-modified bitumen with a tri-laminated woven polyethylene facer and a silicone release film on the back. It is designed to waterproof foundation walls and other below-grade vertical surfaces, on masonry, concrete or wood.
- Thickness 1.5 mm (60 mils); mass 1.5 kg/m²
- CCMC evaluation listing 13560-R
- Water-vapour permeance < 2.5 ng/Pa·s·m², or < 0.04 perm (ASTM E96 Procedure B)
- Resistance to hydrostatic head > 110 m / > 360 ft (ASTM D5385)
- Flexibility at −35 °C (ASTM D5147); crack cycling unaffected at −32 °C, 100 cycles (ASTM C836)
- Tensile strength 11.3 kN/m MD and 15.4 kN/m XD (ASTM D5147); dynamic puncture 747 N (ASTM E154)
Prime with SOPRASEAL STICK PRIMER, ELASTOCOL STICK ZERO or ELASTOCOL STICK H2O. Side laps are 75 mm and end laps 150 mm. Fasten the top edge with a termination bar and seal it with SOPRAMASTIC. Winter grade applies at −10 °C to 10 °C; summer grade at 10 °C to 50 °C. UV exposure is limited to 60 days. Rolls are 1 x 18.7 m, 30 per pallet.
In stock at our Surrey warehouse — request a quote for project pricing.
Categories: AIR/VAPOUR BARRIERS, NON–PERMEABLE MEMBRANES, Roofing Below Grade
