Siplast TeraPROOF™ Pre-Applied H-SBS Membrane

Description

A heavier pre-applied SBS-modified bitumen membrane for horizontal work. It goes under slabs and footings before the concrete pour.

Key features

• 250 g polyester mat reinforcement, impregnated and coated with SBS-modified bitumen
• Fine mineral aggregate top surface
• SBS adhesive backing made for torch-lap sealing, with polyolefin burn-off film
• Typical thickness 165 mils (4.2 mm) per Siplast data sheet
• Tested to ICC-ES AC527 below-grade waterproofing criteria (per Siplast data sheet)
• Roll 1 m x 10 m (99 sq ft), about 39 kg; 23 rolls per pallet

Typical uses

• Pre-applied waterproofing under slabs-on-grade, mat foundations and footings

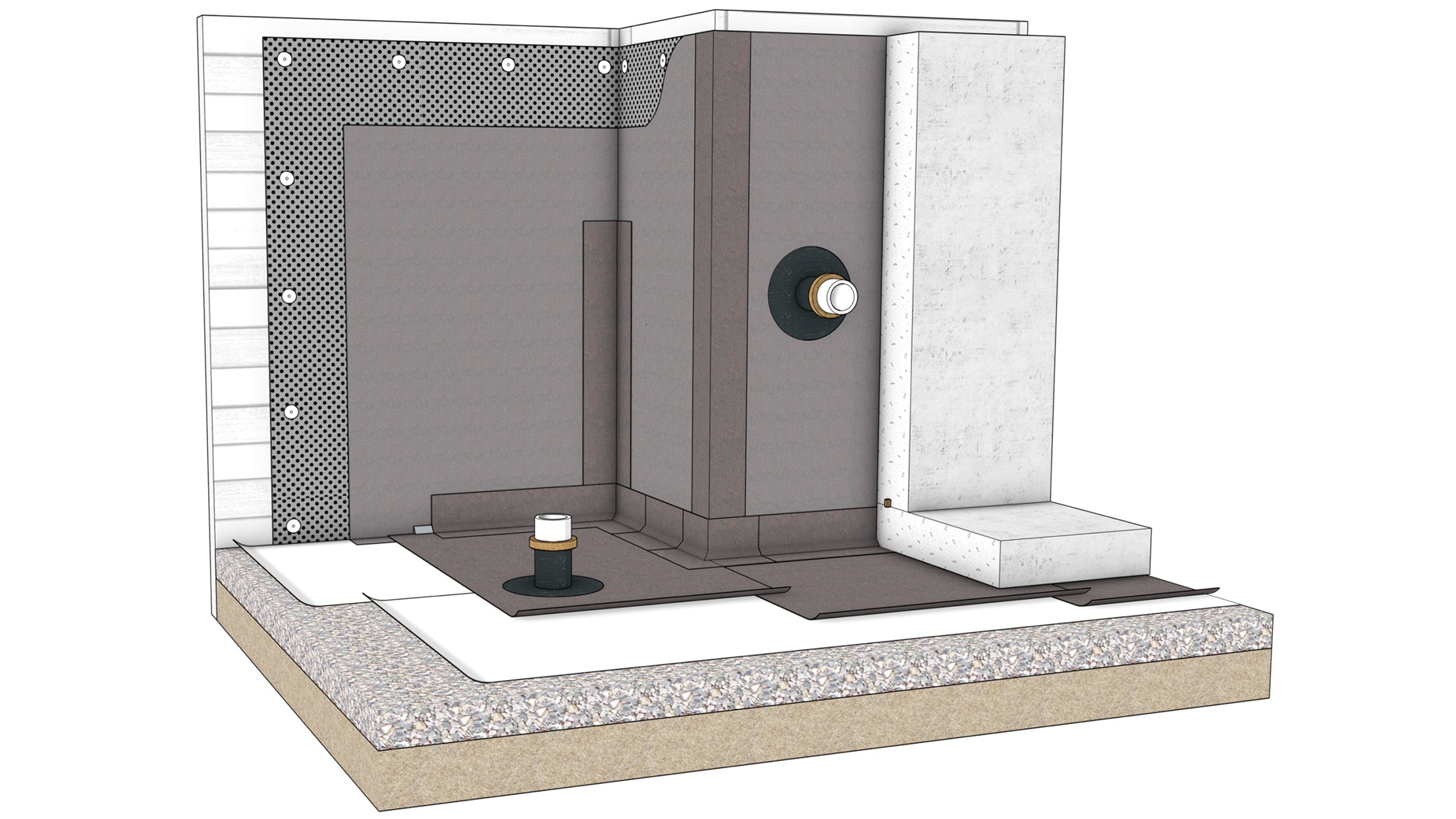

• Horizontal portion of a blindside below-grade system

View Technical Information

Always follow the current Siplast installation guide and project specification. Call BC Building Products at 604-540-9040 or request a quote to check stock and lead time.
