AIR/VAPOUR BARRIERS

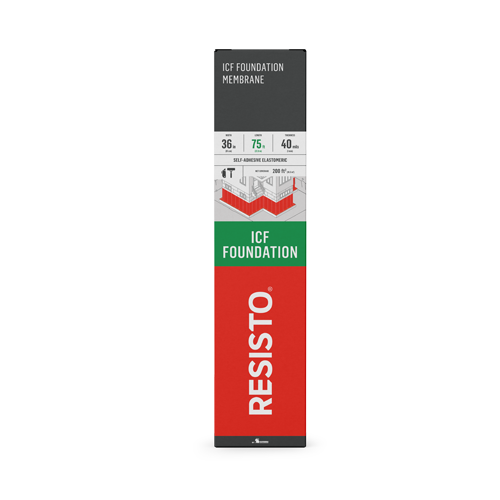

Resisto ICF Foundation Membrane
Resisto ICF Foundation Membrane is a self-adhesive membrane made for sealing insulated concrete form (ICF) foundations. It has an SBS-modified bitumen adhesive, a trilaminate woven polyethylene face and a silicone release film. It is used on EPS or XPS ICF, and also on concrete and PWF. Maximum UV exposure is 90 days. Service temperature is −45 °C to 70 °C.
- Thickness 1.0 mm (40 mils); roll coverage 18 m² (195 sq ft); roll weight 20 kg (44 lb)
- Water-vapour permeance less than 0.04 perm (ASTM E96 Procedure B); water absorption less than 0.1%
- Tensile strength 12.4 / 12.7 kN/m MD/XD (ASTM D5147); elongation 52% / 24%; cold flexibility −30 °C
- Static puncture 400 N (90 lbf) (ASTM D5602); CCMC 13630-R (waterproofing) and 14080-R (dampproofing)
- Store rolls upright
Standard application temperature is 10 °C to 50 °C; a winter grade is listed for −10 °C to 10 °C. On clean, dry ICF it can generally be installed without primer for dampproofing. For waterproofing or concrete, use Resisto H2O Primer or Exterior Primer. Do not use solvent-based primers on polystyrene. Overlaps are 10 cm (4 in).
