Dörken
Dörken Delta Dry

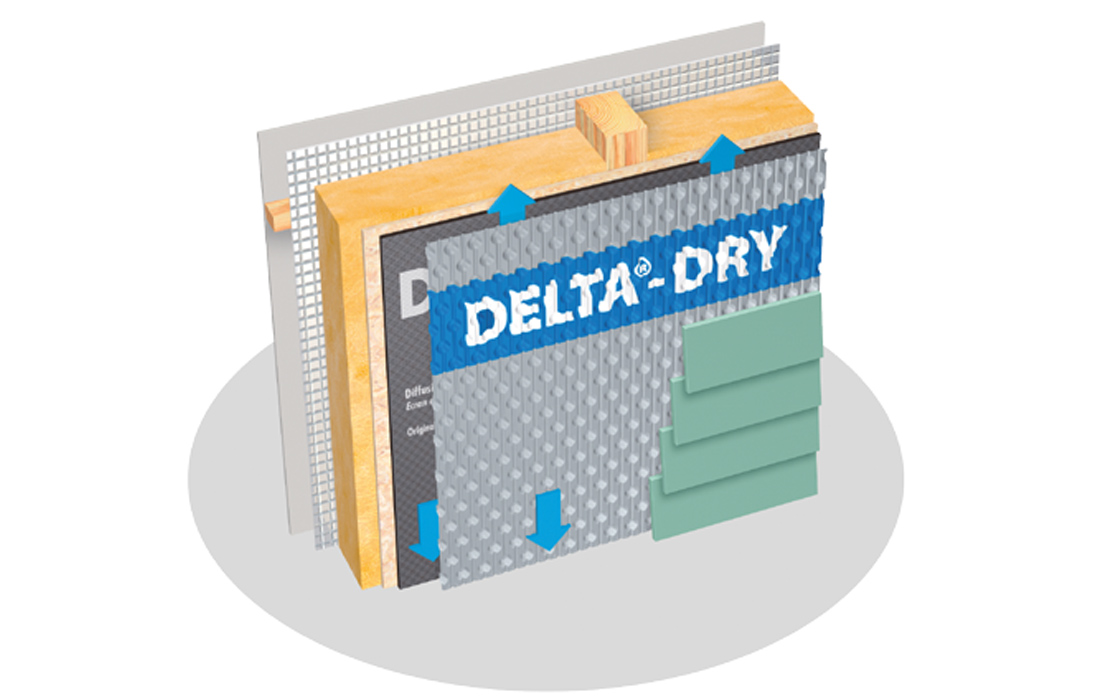

DELTA-DRY is a three-dimensional rainscreen membrane made of high-density polyethylene, stabilized against oxidation and UV. Dörken designed it for two-sided drainage and ventilation through a dimple-and-groove profile, and a capillary break behind the cladding. It is used behind absorptive claddings such as manufactured stone veneer, cement board and conventional stucco, outboard of the water-resistive barrier; seams are butted, not lapped.
- Dimple height about 10.5 mm (2/5 in) (ASTM D1777-96)
- Compressive strength 93 kPa (1,946 psf) at 8% strain (ASTM D6364-06)
- Drainage efficiency about 95% (ASTM 2273); vapour permeance 0.14 perms (ASTM E96, Method A)
- Water-penetration resistance 118 psi (813 kPa), watertight (AATCC 127)
- Flame spread 210 and smoke developed 105–190 (CAN/ULC-S102.2)
- Weight about 525 g/m² (1.71 oz/ft²); contact surface to the WRB less than 20% open more than 80%
Rolls are 3 ft 3 in (1.0 m) by 50 ft (15.24 m), about 18 lb (8 kg). Colour is silver-grey. Service temperature is −30 °C to 80 °C. Do not leave it exposed to UV for more than 30 days.
In stock at our Surrey warehouse — request a quote for project pricing.
Categories: AIR/VAPOUR BARRIERS, Specialty Air - Vapour Barriers
Tag: rainscreen
